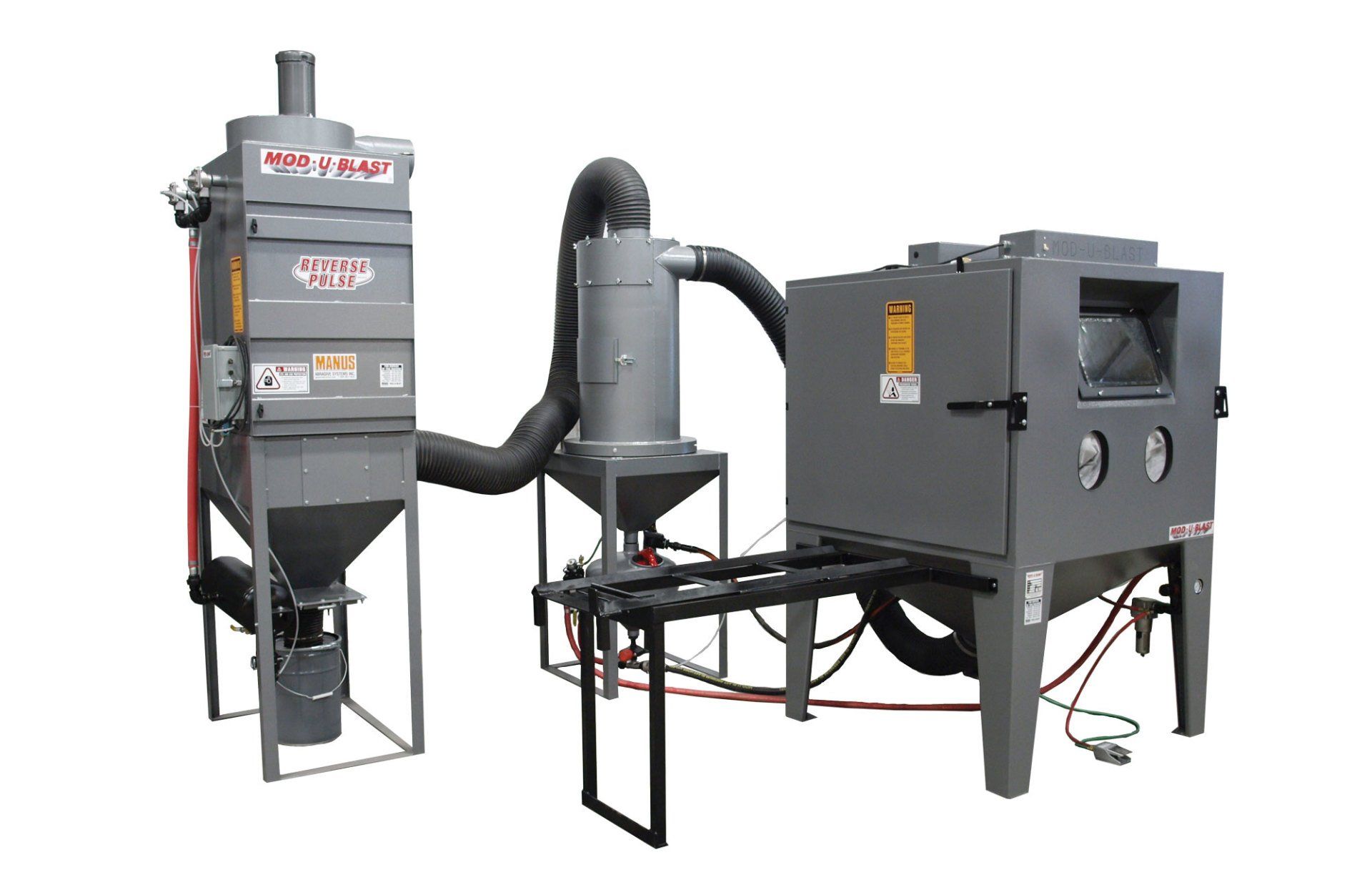

Unit Illustrated above: Model P4848-92C, high production blast cabinet c/w 900 CFM reclaimer, 900 CFM multi-bag dust filter cabinet, and 4-lamp/dual fixture lighting system
HIGH PRODUCTION
- The Mod-U-Blast® “P Series” Pressure Dry Blast Cabinets were engineered for maximum production (3 to 4 times faster than standard suction blasting - “S Series”). Mod-U-Blast® Pressure Cabinets are equipped with a Pneumatic Valve for optimum safety and blast media flow, direction and velocity (foot pedal operated). Pressure systems give the control needed to clean at gentle pressures (10 to 20 PSI) or aggressive cleaning as high as 110 PSI. Minimum pressure with Suction Systems is 30 to 40 PSI. Efficiency
MEDIA RECLAIMER:
- Engineered and designed to precision, the Mod-U-Blast® tunable media reclaimer is unequaled in performance. Separation of the blast media, over sized foreign matter, and dust becomes as accurate as possible in a cyclone-type reclaim system. Equipped with replaceable wear plate.
Available as an upgrade kit for cabinets without reclaimers.
Cabinet work area determines reclaimer size.
METERING / REMOTE SYSTEM:
- Mod-U-Blast® pressure cabinets come standard with an M-Valve metering valve for defined efficiency. This valve allows for the fine-tuning of the flow of media to the mixing point where the abrasive meets the air flow. All pressure cabinets come equipped with an auto-air valve/blow down system that is controlled by a foot controlled pedal. Once the foot pedal is activated, the auto-air valve opens and the blow down valve closes pressurizing the blast vessel to the pre-regulated blast pressure that will start the blast cycle. Once the foot pedal is released, the process reverses and the blast vessel blows down into the rubber lined hopper of the blast cabinet.
STANDARD FEATURES
- 14 gauge steel construction
- Venturi blast nozzle (3/16” - Standard)
- Natural rubber vinyl gloves
- Air blow-off gun
- Perforated steel flooring
- Pneumatic foot pedal control switch
- Cabinets are 100% modular and upgradeable
- Moisture separator, regulator, gauge, control panel
- External lighting system (fluorescent)
- Safety glass - throughout
- Powder coated for durability
- Easy change safety glass window
- Overlapping positive tension doors
- Replaceable reclaim wear plate
- 0.7 Cu. Ft. pressure pot
- Safety relief valve
- Adjustable air intakes for clear visibility
- Safety door shut-offs
Air Requirements:
| Nozzle | Bore Size | CFM@80PSI |
|---|---|---|
| 2 | 1/8" | 18 |
| 3 (standard) | 3/16" | 39 |
| 4 | 1/4" | 69 |
| 5 | 5/16" | 115 |
| 6 | 3/8" | 160 |

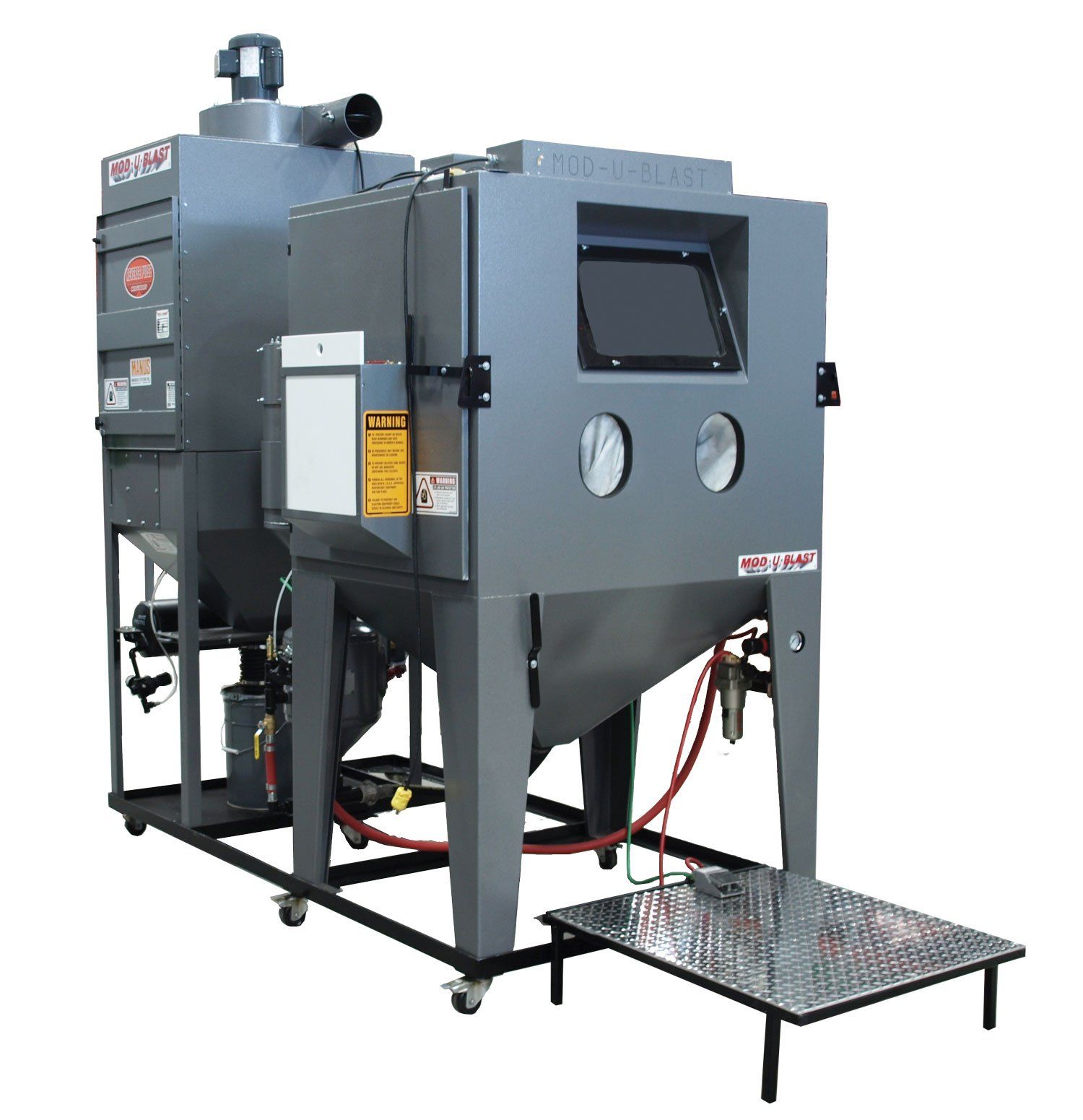

Unit Illustrated Above: Model P4836-62C, Custom P-series cabinet c/w 600 CFM reclaimer, 600 CFM reverse pulse dust collector and mobile work cart with swivel phenolic casters
P-Series Cabinet Options
Available with inside and/or outside track assembly or as set-in turntable only. Standard turntables hold up to 700 lbs, custom turntables hold up to 2000 lbs. Mod-U-Blast’s turntable systems will increase worker convenience, comfort and productivity while decreasing glove wear, hand injuries and overall operator fatigue. Ideal for blast cleaning larger, heavier components. May be furnished for one (1) or both (2) sides of the blast cabinet.
Wear kits are available for all machine sizes. This option is recommended when harsh blast media is being used, eg: aluminum oxide. A cabinet wear kit will extend the life of any machine regardless of the media being used. Each wear kit includes: 1/16” Natural gum draping on sides and back of cabinet, H.D. rubber lined return hose, and tungsten carbide blast nozzle.* Urea Spray lining available
Custom Pass through kits available for new or existing Cabinets.
Save time and discomfort blasting pipe with Mod-U-Blast’s Pipe Rolling Carts.
P-SERIES ORDERING INFORMATION
| Stock # | Description | Working Chambers (W"xD"xH") | Estimated Shipping Weight (lbs.) |
|---|---|---|---|
| P3026-3B | PRES.CABINET 300 CFM RECLAIMER & BAG | 30” x 26” x 40” | 503 |
| P3026-3FH | PRES. CABINET 300 CFM RECL. & HOPPER FILTER | 663 | |
| P3026-31C | PRES. CABINET 300 CFM RECL. & REV. PULSE D/C | 853 | |
| P3626-3B | PRES. CABINET 300 CFM RECLAIMER & BAG | 30” x 26” x 40” | 573 |
| P3626-3FH | H PRES. CABINET 300 CFM RECL. & HOPPER D/F | 733 | |
| P3626-31C | PRES. CABINET 300 CFM RECL. & R/P D/C | 923 | |
| P3626-6B | PRES. CABINET 600 CFM RECLAIMER & BAG | 593 | |
| P3626-6FH | PRES. CABINET 600 CFM RECL. & HOPPER D/F | 783 | |
| P3626-62C | PRES. CABINET 600 CFM C/W REV. PULSE D/C | 973 | |
| P3636-6B | PRES. CABINET 600 CFM RECLAIMER & BAG | 36” x 36” x 40” | 690 |
| P3636-6FH | PRES. CABINET 600 CFM RECL. & HOPPER D/F | 875 | |
| P3636-62C | PRES. CABINET 600 CFM C/W REV. PULSE D/C | 1073 | |
| P4836-6B | PRES. CABINET 600 CFM RECLAIMER & BAG | 48” x 36” x 40” | 783 |
| P4836-6FH | PRES. CABINET 600 CFM RECL. & HOPPER D/F | 973 | |
| P4836-62C | PRES. CABINET 600 CFM C/W REV.PULSE D/C | 1183 | |
| P4836-9B | PRES. CABINET 900 CFM RECLAIMER & BAG | 803 | |
| P4836-9FH | PRES. CABINET 900 CFM RECL. & HOPPER D/F | 1100 | |
| P4836-92C | PRES. CABINET 900 CFM C/W REV. PULSE D/C | 1260 | |
| P4848-9B | PRES. CABINET 900 CFM RECLAIMER & BAG | 48” x 48” x 40” | 833 |
| P4848-9FH | PRES.CABINET 900 CFM RECL. & HOPPER FILTER | 1283 | |
| P4848-92C | PRES. CABINET 900 CFM C/W REV. PULSE D/C | 1458 | |
| P6036-9FH | PRES. CABINET 900 CFM RECL. & HOPPER D/F | 1248 | |
| P6036-92C | PRES. CABINET 900 CFM C/W REV. PULSE D/C | 1413 | |
| P6048-9FH | PRES. CABINET 900 CFM RECL. & HOPPER D/F | 1378 | |
| P6048-92C | PRES. CABINET 900 CFM C/W REV.PULSE D/C | 1503 | |
| P6060-12FH | PRES. CABINET 1,200 CFM RECL. & FILT/W PER | 60” x 60” x 40” | 1565 |
| P6060-12C | PRES. CABINET 1,200 CFM C/W REV. PULSE D/C | 1688 | |
| P7272-12FH | PRES. CABINET 1,200 CFM & HOPPER FILTER | 72” x 72” x 40” | |
| P7272-12C | PRES. CABINET 1,200 CFM C/W REV. PULSE D/C |
Dual Station - Single Nozzle P-Series Pressure Blast Cabinets
| Stock # | Description | Working Chambers (W"xD"xH") | Estimated Shipping Weight (lbs.) |
|---|---|---|---|
| DP7236-9FH | DUAL PRESSURE 900 CFM & HOPPER FILTER | 72” x 36” x 40” | 1610 |
| DP7236-92C | DUAL PRESSURE 900 CFM & REV. PULSE D/C | 1723 | |
| DP7236-12FH | DUAL PRESSURE 1,200 CFM & HOPPER FILTER | 1650 | |
| DP7236-12C | DUAL PRESSURE 1,200 CFM C/W REV. PULSE D/C | 1783 | |
| DP9636-12FH | DUAL PRESSURE 1,200 CFM & HOPPER FILTER | 96” x 36” x 40” | 2428 |
| DP9648-12C | DUAL PRESSURE 1,200 CFM C/W REV. PULSE D/C | 96” x 48” x 40” | 2588 |
