Cartridge Type
- For cabinets without reclaimers only. Keeps cabinet free of dust while providing clear viewing. For use where less frequent blasting time is required. Back-mount or free-standing.
- 1/2 HP, 150 CFM
Dust Bag
- Double walled and fastened to reclaim exhaust outlet, this method of dust collection is recommended for occasional use only (2 sporadic hours or less/day)
- Complete with zippered dump-out which allows for fast disposal of collected material. Cabinets with dust bag systemcan be upgraded easily at any time with Mod-U-Blast®'s 300, 600, and 900 CFM dry exhaust, multi-bag filter cabinets below.

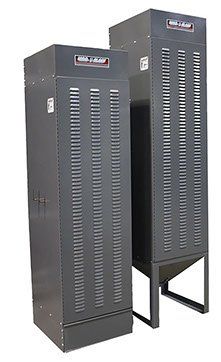

Multi-Bag Dry Filter
- Mod-U-Blast® multi-bag dust filter cabinets consist of either 15, 25, 40, or 50 (300, 600, 900 or 1,200 CFM) cotton sock type filter bags which are tightly mounted into steel housings (top and bottom). Clean air is returned to the outside through louvered panel door and dust and dirt are contained in bottom drawer.
- Dust to drawer or hopper is assisted by manual shaker. Air volume damper control is also standard on all Mod-U-Blast® Filter Cabinets. Also available as an upgrade kit for machines with dust bag only. Recommended for more frequent use, high protection.
Reverse Pulse Dust Collection
- Mod-U-Blast® reverse pulse cartridge dual collectors are available from 300 CFM to 12,000 CFM. They provide optimum clean air environments for blast cabinets, booths and blast rooms. Reverse pulse collectors feature high efficiency 280 pleat filter cartridges.
- Models M300-2C, M600-2C, M900-2C, M1200-2C, M3000-6C, M6000-12C come with push button cleaning system or optional auto-timed controls. Reverse pulse collectors larger than 1,200 CFM(2C) come standard with auto-timed controls. Hopper discharge is standard with all reverse pulse collectors.
Dry Filter & Dust Collector Ordering
| STOCK # | DESCRIPTION |
|---|---|
| 16545 | 1.25 HP shop dust collector, VAC. |
| 16550R-P | 100 CFM 'E' Series collector |
| 16550 | 150 CFM 'S' Series collector |
| M300F | 300 CFM Dry Filter - space saver |
| M300FH | 300 CFM Dry Filter - hopper |
| M600F | 600 CFM Dry Filter - space saver |
| M600FH | 600 CFM Dry Filter - hopper |
| M900F | 900 CFM Dry Filter saver |
| M900FH | 900 CFM Dry Filter - hopper |
| M300E-1C | 300 CFM Reverse Pulse Collector |
| M600-2C | 600 CFM Reverse Pulse Collector |
| M900-2C | 900 CFM Reverse Pulse Collector |
| M1200-2C | 1200 CFM Reverse Pulse Collector |
| M3000-6C | 3000 CFM Reverse Pulse Collecotor |
| M6000-12C | 6000 CFM Reverse Pulse Collector |
Code Legend
| VAC | Industrial Vac Collector |
| DC | Economy Dust Collector |
| 3 | 300 CFM Reclaim/Separator |
| 6 | 600 CFM Reclaim/Separator |
| 9 | 900 CFM Reclaim/Separator |
| 12 | 1200 CFM Reclaim/Separator |
| B | Dust Bag |
| F | Dry Exhaust Filter Cabinet |
| FH | Filter Cabinet w/ Hopper |
| C | Reverse Pulse Cartridge Collector |
Filter Replacements
| STOCK # | DESCRIPTION |
|---|---|
| 11501 | Dust Bag Replacement 300 CFM - 5 Inlet |
| 11502 | Dust Bag Replacement 600 CFM - 6 Inlet |
| 11503 | Dust Sock Replacement for MUB Dry Filters |
| 11507 | Reverse Pulse Cartridge - 300, 600, 900 CFM units |
| 11506 | Reverse Pulse Cartridge - 1200, 3000, 6000 CFM units |
