VENTURI BLAST NOZZLES

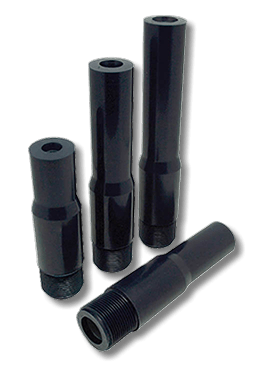

APV Series Long Venturi Nozzles
1” entry, 1-1/4” NPSM thread, all polyurethane jacket with tungsten carbide liner.
| STOCK # | MODEL # | LENGTH | BORE SIZE |
|---|---|---|---|
| 307014 | APV-4 | 5-1/2" | 1/4" |
| 307015 | APV-5 | 5-3/4" | 5/16" |
| 307016 | APV-6 | 6-3/4" | 3/8" |
| 307017 | APV-7 | 8" | 7/16" |
| 307018 | APV-8 | 9-1/8" | 1/2" |

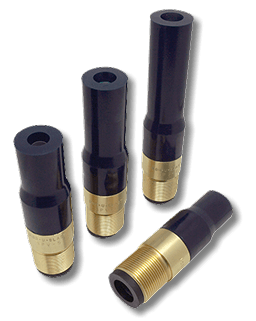

BPV Series Long Venturi Nozzles
1" entry, 1-1/4 NPSM thread, polyurethane jacket with brass threads and tungsten carbide liner
| STOCK # | MODEL # | LENGTH | BORE SIZE |
|---|---|---|---|
| 307003 | BPV-3 | 4-1/2" | 5/16" |
| 307004 | BPV-4 | 5-1/2" | 1/4" |
| 307005 | BPV-5 | 5-3/4" | 5/16" |
| 307006 | BPV-6 | 6-3/4" | 3/8" |
| 307007 | BPV-7 | 8" | 7/16" |
| 307008 | BPV-8 | 9-1/8" | 1/2" |

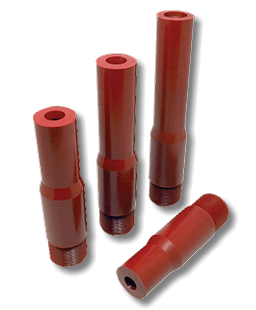

SAP Series Long Venturi Nozzles
1” entry, 1-1/4” NPSM thread, polyurethane jacket with long life, light weight MUB sialon liner
| STOCK # | MODEL # | LENGTH | BORE SIZE |
|---|---|---|---|
| 308014 | SAP-4 | 5-1/2" | 1/4" |
| 308015 | SAP-5 | 5-3/4" | 5/16" |
| 308016 | SAP-6 | 6-3/4" | 3/8" |
| 308017 | SAP-7 | 8" | 7/16" |
| 308018 | SAP-8 | 9-1/8" | 1/2" |

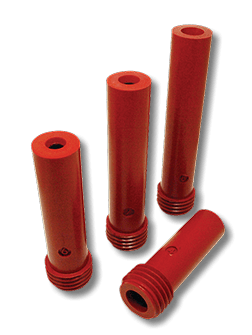

SAP 50mm Series Long Venturi Nozzles
Nozzles 50MM (2-4-1/2” U.N.C.) Contractor thread, 1” entry all polyurethane jacket with long life, light weight, Sialon liner.
| STOCK # | MODEL # | LENGTH | BORE SIZE |
|---|---|---|---|
| 309014 | SAP50-4 | 5-1/2" | 1/4" |
| 309015 | SAP50-5 | 5-3/4" | 5/16" |
| 309016 | SAP50-6 | 6-3/4" | 3/8" |
| 309017 | SAP50-7 | 8" | 7/16" |
| 309018 | SAP50-8 | 9-1/8" | 1/2" |
ANGLE NOZZLES
M45 Series Angle Nozzles
1-1/4” NPSM thread, tungsten carbide body with aluminum threads, 3/8” long.
| STOCK # | MODEL # | BORE SIZE | ANGLE |
|---|---|---|---|
| 345410 | M45-4 | 1/4" | 45° |
| 345420 | M45-42 | 1/4" x 2 | 45° |
| 345430 | M45-43 | 1/4" x 4 | 45° |
| 345510 | M45-5 | 5/16" | 45° |
| 345530 | M45-53 | 5/16" x 3 | 45° |
| 345610 | M45-6 | 3/8" | 45° |
| 345630 | M45-63 | 3/8" x 3 | 45° |
MUB-Kurv Angle Nozzle
1-1/4” NPSM thread, tungsten carbide liner, metal jacket and threads. 40° angle bend.
| STOCK # | MODEL # | BORE SIZE |
|---|---|---|
| 345600 | MUB-Kurv | 3/8" |
