Custom Manufactured Blast Systems

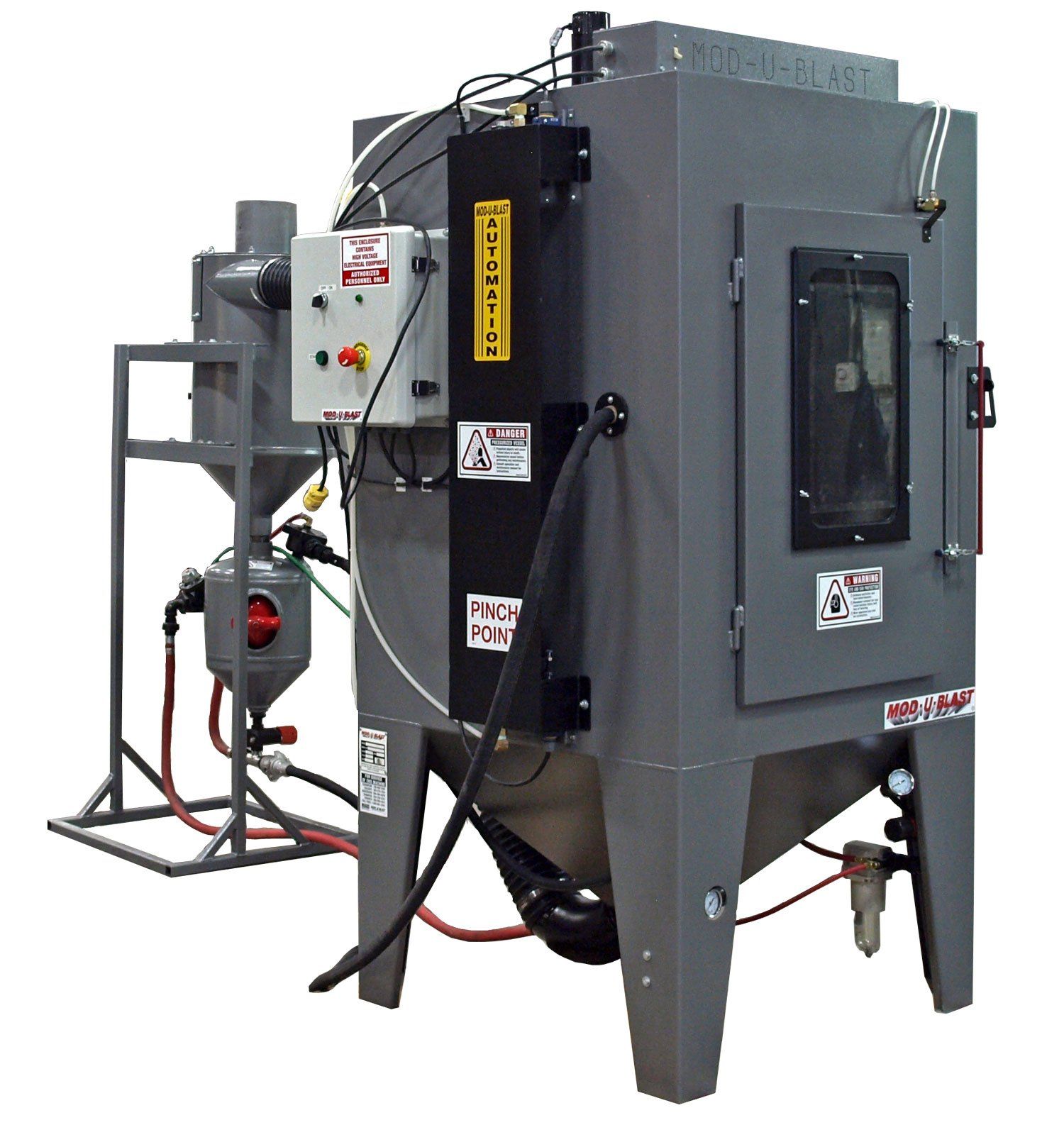

Custom Automated Pressure Blast Cabinet

  • Custom (36”W x 36”D x 44”H) automated pressure cabinet
  • Traversing automated blast arm with adjustable Blast Gun assemblies with 5/16” (#5) Tungsten Carbide Nozzles mounted on blast arm that has up to a 36” stroke.
  • 600 CFM reverse pulse dust collector (not shown)
  • 600 CFM reclaimer

custom sandblasting machine

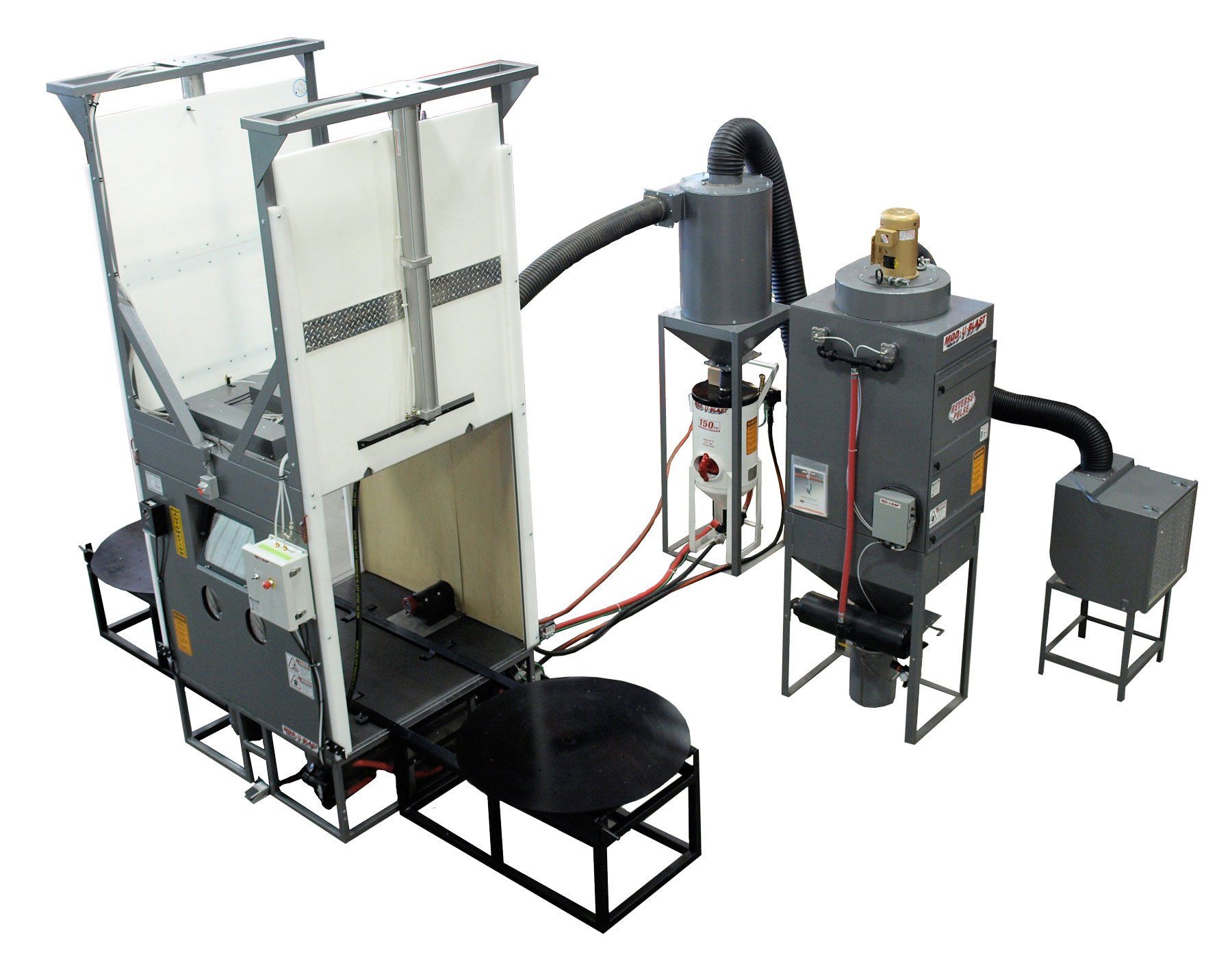

Custom (72”W x 72”H x 44”H) Pressure
Cabinet with Dual Vertical Doors & Automated Turntables
 COMPLETE WITH:
  •  Custom (72”W x 72”D x 44”H) pressure cabinet with automated turntables
  •  Dual vertical doors with safety shut-off
  •  Dual automated turntables (2000 lb capacity) (0-29 RPM)
  •  1200 CFM reverse pulse dust collector with hepa filter
  •  1200 CFM reclaimer
  •  Photo electric sensors
Custom dual vertical door sandblasting cabinet with turntable

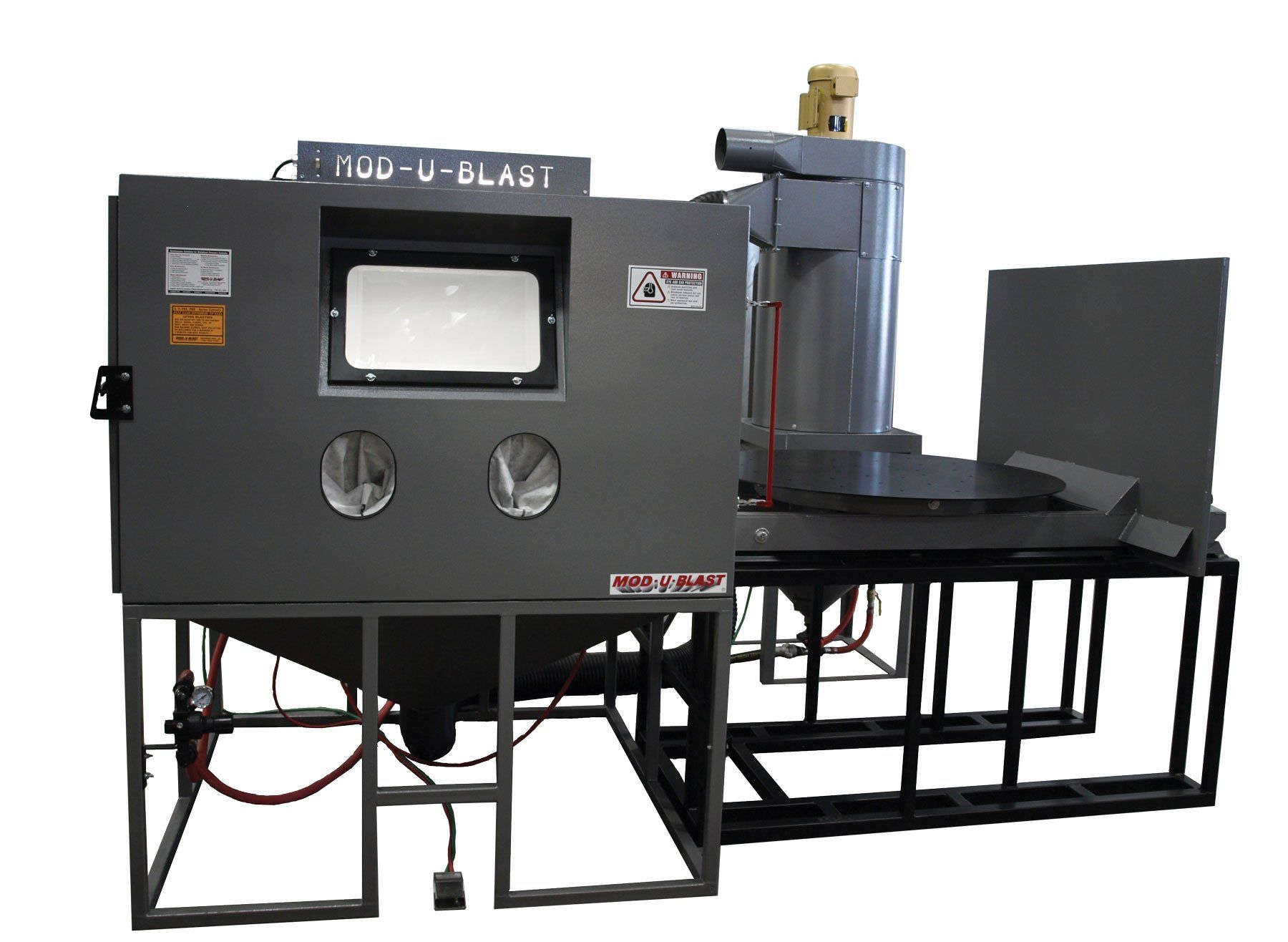

 Custom (60" W x 48" D x 52" H) Monument Stone Blasting Cabinet with Heavy Duty Work Cart
COMPLETE WITH:
  • Custom (60" W x 48" D x 52" H)
  • Custom work cart assembly with 1,500 lb capacity work load for monumental stone blasting
  • Custom 1,200 CFM low profile dust collector system
  • Heavy duty work cart built on door assembly with heavy duty external track
blast cabinet with built in turntable

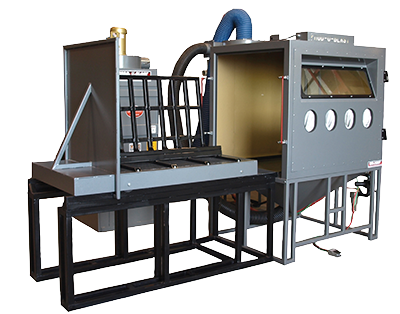

 Custom (60" W x 48" D x 52" H) Monument Stone Blasting Cabinet with Heavy Duty Work Cart
COMPLETE WITH:
  • Custom (60" W x 48" D x 52" H)
  • Custom work cart assembly with 1,500 lb capacity work load for monumental stone blasting
  • Custom 1,200 CFM low profile dust collector system
  • Heavy duty work cart built on door assembly with heavy duty external track
monument stone sandblasting cabinet

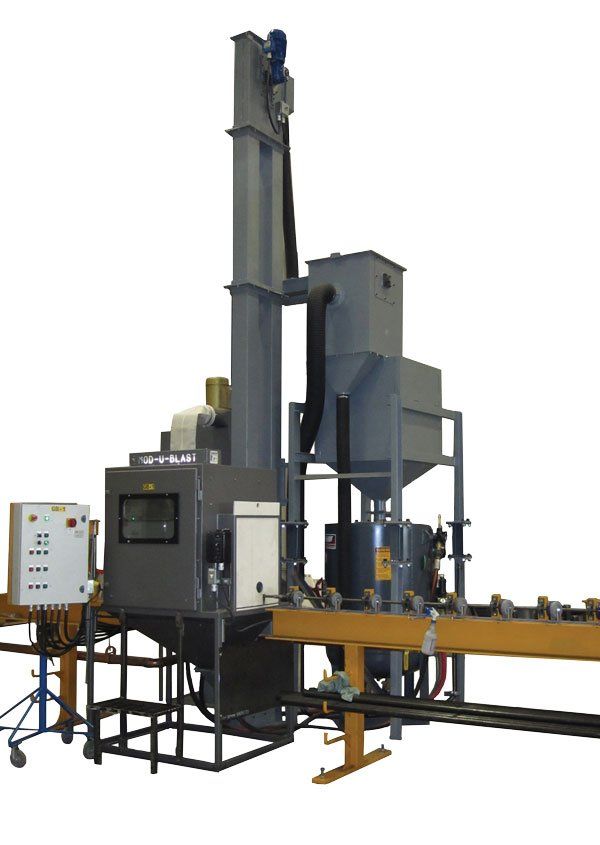

36” x 36” Pipe Pass-Through Two Nozzle
Automated Blast Cabinet For Steel Grit/Shot
 COMPLETE WITH:
  •  (2) Custom pass through boxes with puck board cut outs located on each side of cabinet
  •  Cabinet constructed out of solid welded 7 gauge steel
  •  Custom viewing window and external fluorescent light assembly
  • Front access maintenance door
  •  Replaceable heavy gauge deflector wear plates
  • (2) Adjustable blast nozzles
  • MBMTV-20SRE2 - 20 Cu.Ft. two outlet blast pot complete with 12 Volt controls that will be located on cabinet
  • Bucket elevator recovery with tunable air wash and 20 Cu.Ft. media storage hopper with manual slide gates
  • 1,200 CFM Reverse pulse dust collector complete with auto pulse controls
  • 1 – DC, 2 – Air Wash 3 – Bucket Elevator
  • Control panel operating system
custom pipe blasting cabinet for steel shot and grit
