Deliquescent Air Dryer Skids, Vertical

Deliquescent Air Dryer Skids
Vertical, Classic, & H.D. Models

vertical deliquescent air dryer

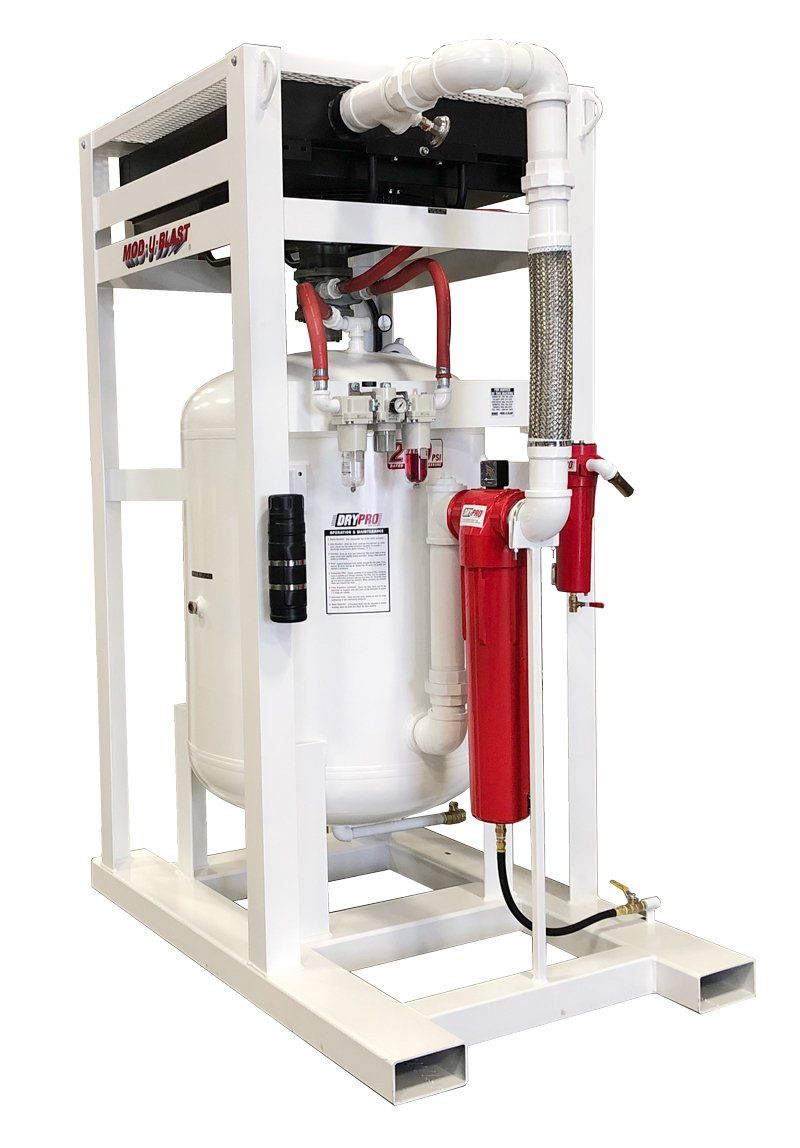

Unit Illustrated Above: Model DSV-1600
1600 CFM Vertical air dryer

DRY-PRO™ by MOD-U-BLAST® Single Tower, Deliquescent, Air Dryers are a skid mounted system which includes an aftercooler, a coalescing filter and a single tower dryer filled with desiccant tablets. Warm air enters the aftercooler where it is cooled close to the surrounding temperature, water is then condensed out during this cooling process. The saturated air and the liquid water pass through a coalescing filter where any oil contaminants from the compressor are removed and then proceeds to the inlet of the dryer tank. The water and any solid particles present are separated by gravity and fall to the bottom of the dryer tank. The air moves up through the desiccant tablets which absorb the moisture from the air before it flows through the dryer outlet. The tablets dissolve gradually as they absorb the moisture. The dissolved desiccant and water, falls into the bottom of the vessel. The dryer must be drained periodically to remove the accumulated solution. A manual ball valve is installed for this purpose.

Features
  •  Polyarmor G17 lined deli-vessel
  •  FRL Package
  • Sight glass
  • Aftercooler
  • Temperature guage
  • (2) Coalescing Filters
  • CRN Registered Vessel, U Stamped, National Board Certified, ABSA Certified (Alberta) - 1000 & 1600 CFM models only, AS1210 Registered (Australia).
  • Pressure relief valve
  • Full load lifting eyes / fork pockets


Available in 5 models: 250, 450, 750, 1000 and 1600 CFM

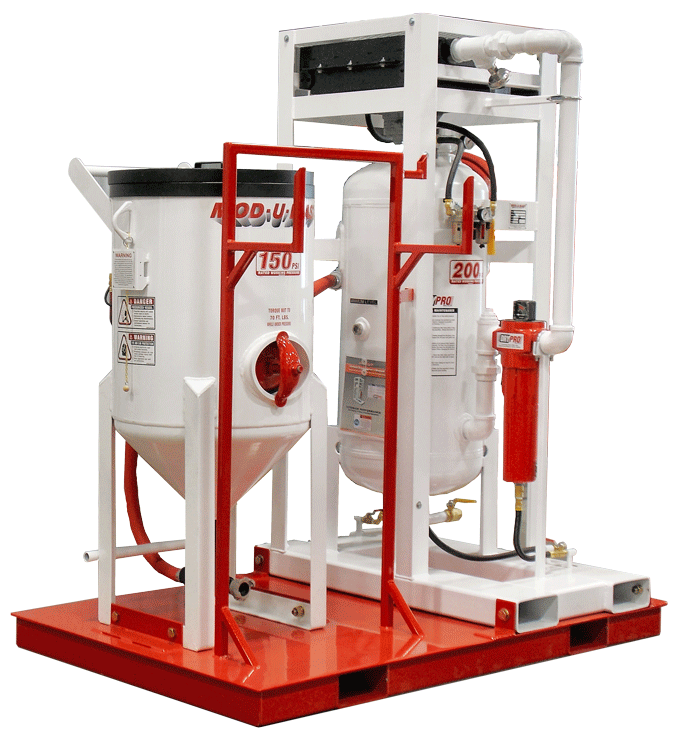

Custom Blaster / Dryer Combos also available
Custom skids are designed to your requirements..

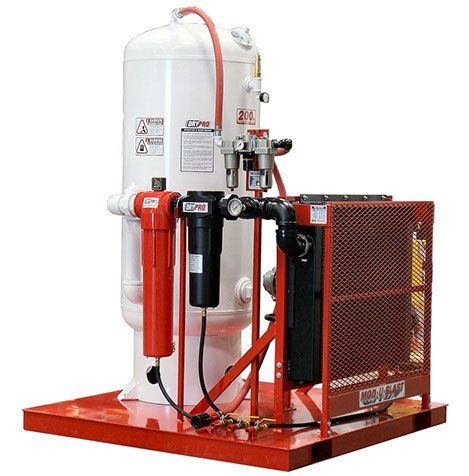

DELIQUESCENT AIR DRYER SKIDS, CLASSIC

All Mod-U-Blast® Dry-Pro dryer skids include CRN Registered, National board (ASME) certified epoxy lined vessel, air driven after cooler with FRL package, temperature gauge, safety relief valve, skid mounted with fork pockets. Coalescing filter (highly recommended), moisture filter and initial desiccant tablet fill are add options.
deliquescent air dryer skid

H.D. DELIQUESCENT AIR DRYER SKIDS - 1600 H.D. & 2500 H.D. MODELS

deliquescent air dryer skid

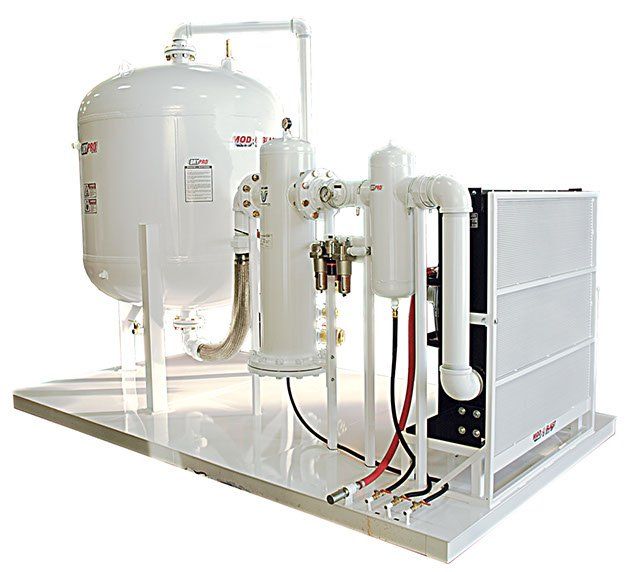

DS-2500HD (2500 CFM Air Dryer shown in photo)
All Mod-U-Blast® Dry-Pro H.D. dryer skids include CRN Registered, National board (ASME) certified epoxy lined vessel, air driven after cooler with FRL package, temperature gauge, safety relief valve, skid mounted with fork pockets. Coalescing filter (Not standard but highly recommended), moisture filter and initial desiccant tablet fill are add options.
